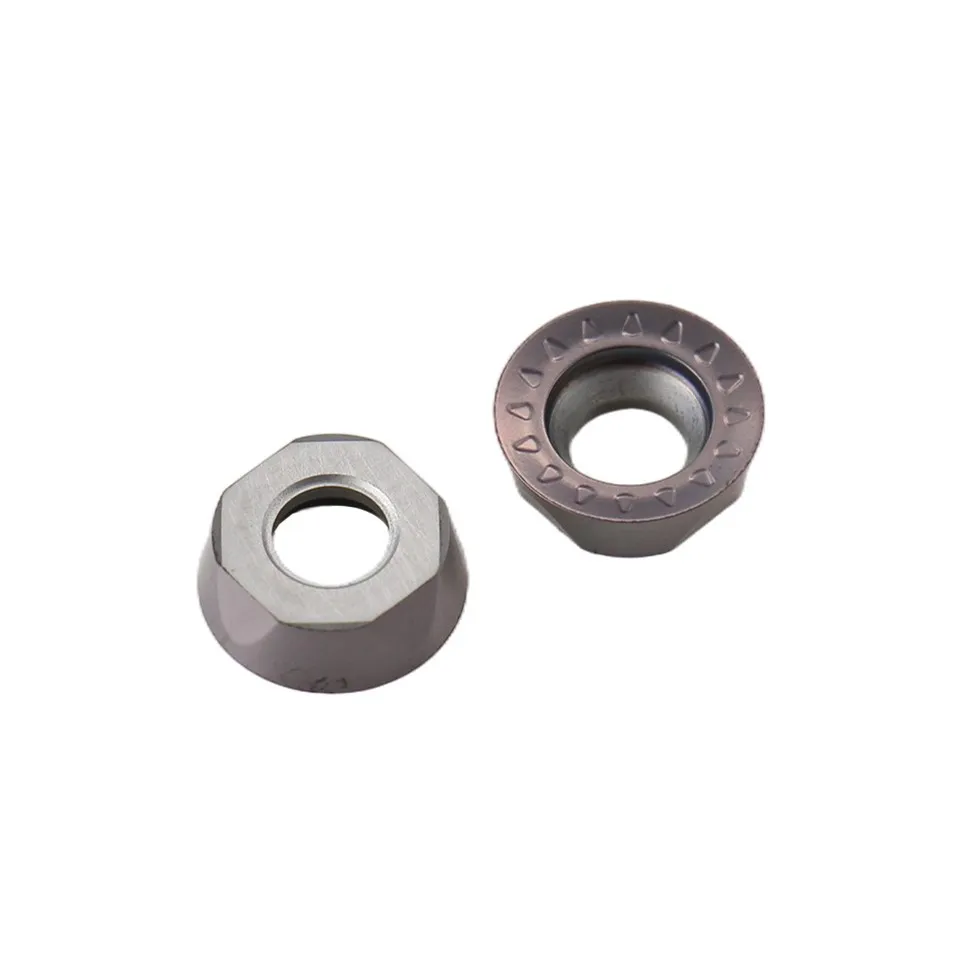

RP Series Inserts
CNC milling insert. Carbide body. Built for roughing.
TiAlSiN PVD coating. Bronze look. Takes heat, resists oxidation.
Roughing geometry. Low resistance, deep cuts. Roughing gets faster.
Strong edges. Less breakage risk. Handles heavy loads. Lasts longer.
HRC20-45 range. Covers conventional steel jobs.
Materials: A3 steel, 45# steel, P20 mold steel, 201/304 stainless steels.
Small Craftsman (Shandong) Machine & Tools Co., Ltd. is one of the leading manufacturers and suppliers of rp series inserts in China. If you're going to wholesale bulk advanced rp series inserts, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
RPMT Round Milling Insert

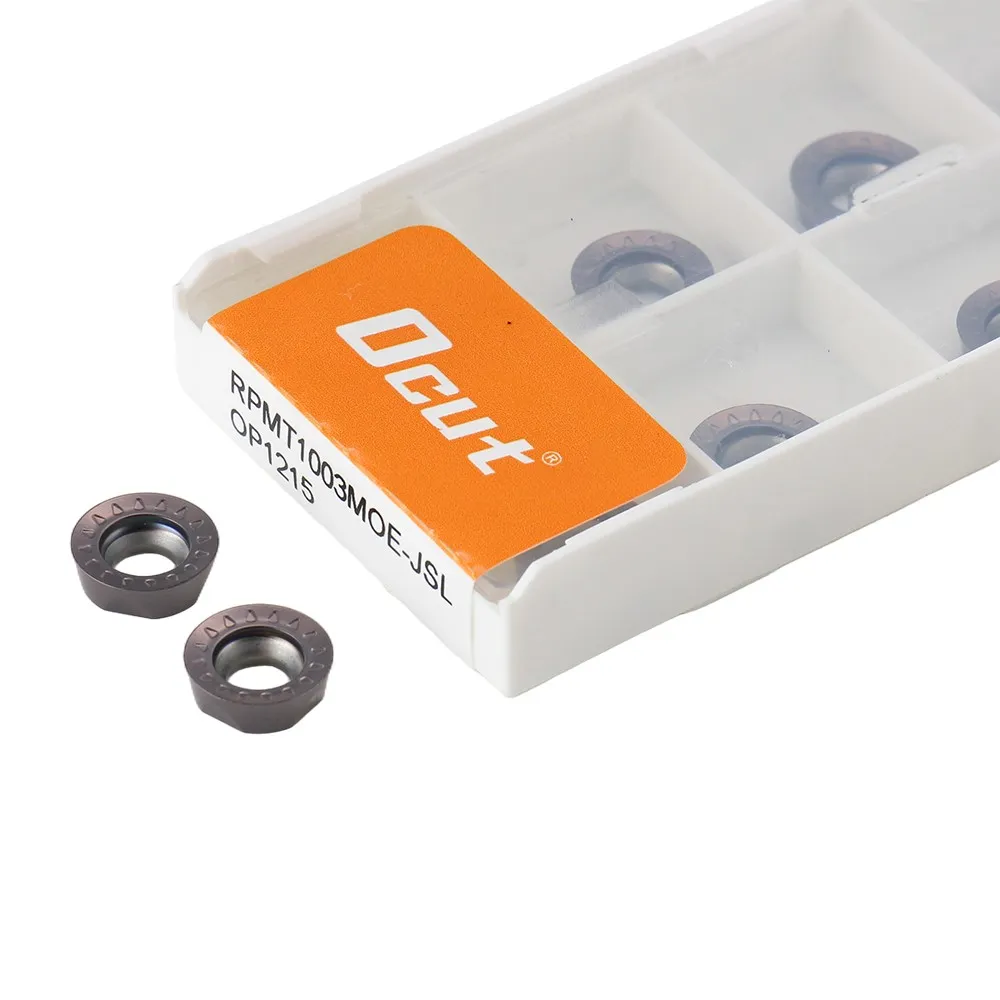

RPMT1003MOE-JSL
CNC milling insert. Carbide body. Built for roughing.
TiAlSiN PVD coating. Bronze look. Takes heat, resists oxidation.
Roughing geometry. Low resistance, deep cuts. Roughing gets faster.
Strong edges. Less breakage risk. Handles heavy loads. Lasts longer.
HRC20-45 range. Covers conventional steel jobs.
Materials: A3 steel, 45# steel, P20 mold steel, 201/304 stainless steels.
Universal design. Carbon steel or stainless-one insert handles both.
Coating holds up. No softening or wear during long runs. Insert life extends.
Optimized chip groove. Chips flow smooth, no clogging. Stable chip evacuation in roughing.
Ground edges. Cuts smooth and stable. Low vibration. Fewer rejects.
Fits CNC machining centers and mills. Versatile. Wide roughing applications.
High precision body. Minimal runout. Dimensions stay consistent, machining stays stable.
RPMT1003MOE-JSL CNC milling insert, crafted from carbide material, roughing-specific high-efficiency insert geometry
1. Features TiAlSiN PVD coating process with bronze appearance, excellent high-temperature and oxidation resistance
2. Roughing-specific insert geometry design with low cutting resistance and large depth of cut, significantly improving roughing efficiency
3. High cutting edge strength effectively reduces tool breakage risk, resistant to damage under high-load cutting with enhanced durability
4. Suitable for machining hardness range HRC20-45, covering various conventional steel machining scenarios
5. Applicable to A3 steel, 45# steel, P20 mold steel, 201/304 stainless steel and other materials
6. Universal steel workpiece design accommodating both carbon steel and stainless steel machining with wide application scope
7. Enhanced by coating, resistant to softening and wear during continuous machining, effectively extending insert service life
8. Optimized chip evacuation groove design for smooth chip flow without clogging, enhanced chip evacuation stability during roughing
9. Precision-ground cutting edges for smooth and stable cutting, minimal vibration during roughing process, reducing rejection rates
10. Compatible with CNC machining centers, CNC milling machines and other equipment, strong versatility with wide roughing application scenarios
11. High insert body precision with minimal runout during machining, ensuring workpiece dimensional consistency and machining stability
Why This Carbide Milling Insert Works
Interpretation of Model Codes (Mitsubishi Standard)
R = Circular blade; P = 11° relief angle; M = Precision grade tolerance; T = Single-sided countersunk installation hole; 10 = Nominal blade diameter φ10 (tip R5); 03 = Blade thickness 3.97mm; MOE = General chip-breaking groove (steel / stainless steel / mold steel general); JSL = Fine processing low-resistance groove type
Standard Dimension Parameters (mm)
1. Inner circle radius IC (outer diameter of the blade): φ10.0
2. Blade thickness S: 3.97 (marked as 03/T3)
3. Installation inner hole d: φ4.4
4. Rear angle α: 11°
5. Blade tip radius R: R5
6. Suitable collet: EMR5R round nose milling collet (with M4 screw)

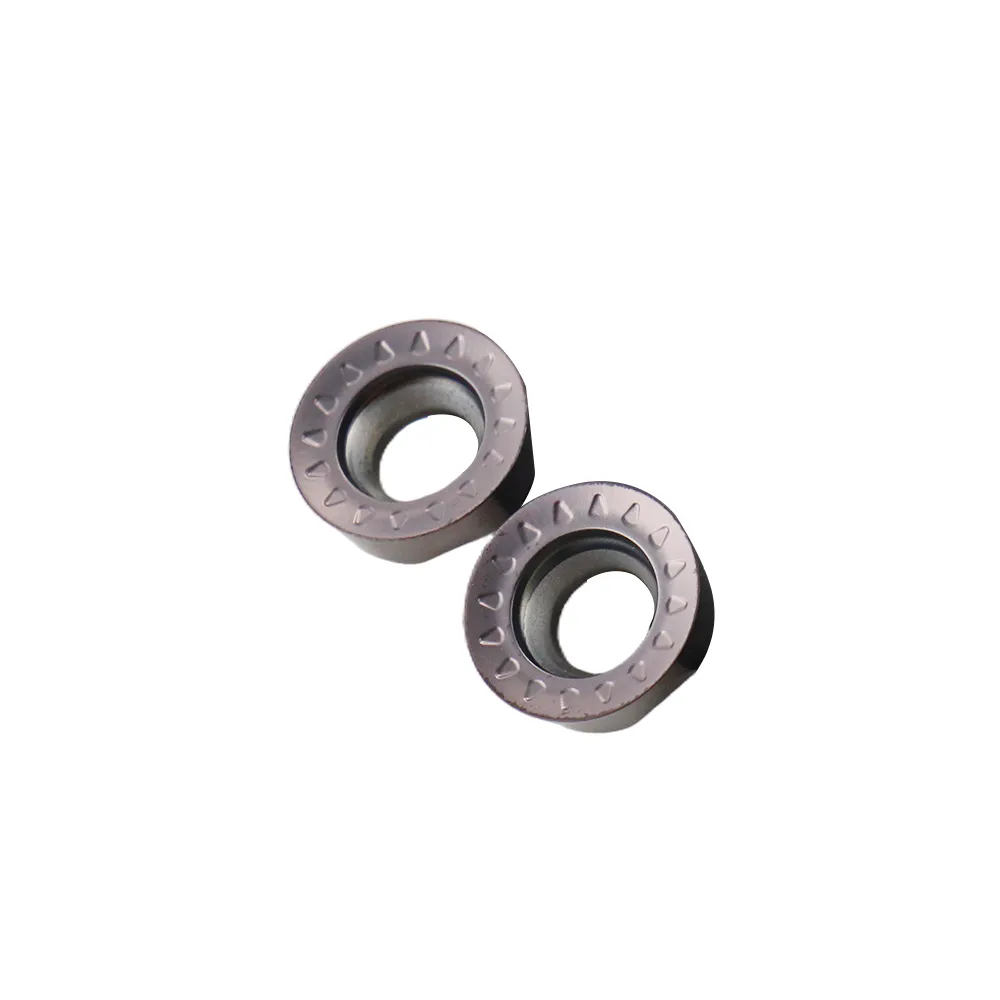

Physical appearance
Features of Slot-type JSL
1. JSL slot type: Light cutting precision machining slot, sharp cutting edge, smooth chip removal
2. Compatible materials: 45# steel, Cr12, P20/718 mold steel, 304 stainless steel
3. Cutting recommended parameters:
· Linear speed Vc: 80–180 m/min
· Per tooth feed fz: 0.10–0.35 mm/z
· Radial cutting depth ae: ≤5mm; Axial cutting depth ap: ≤3.0mm

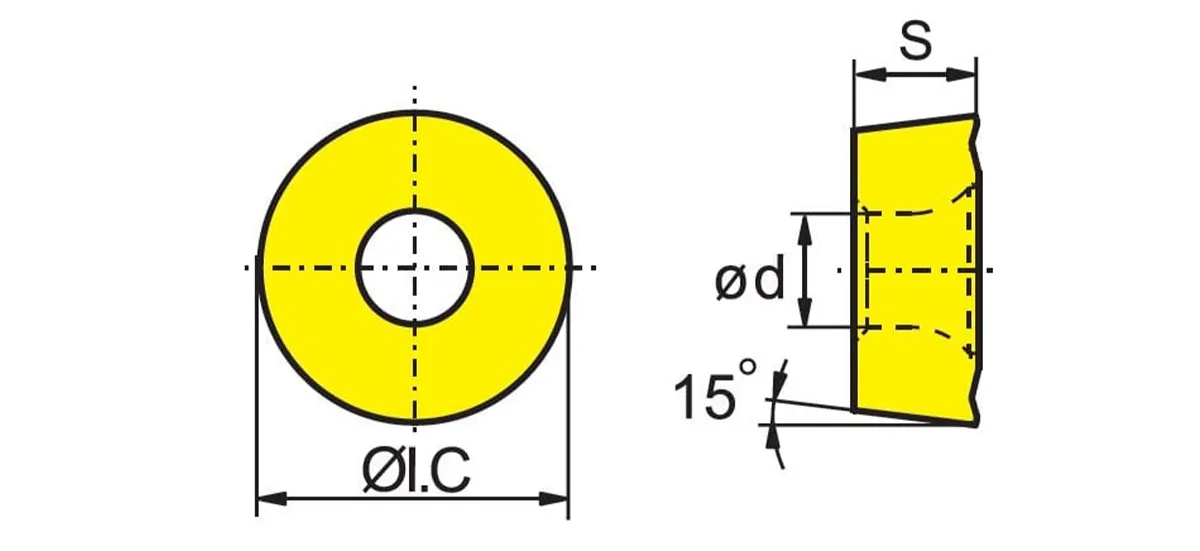

Corresponding drawing explanations for the same series
The drawing structure of RPMT1003MOE-JSL is completely compatible with RPMT10T3MOE, with only the chip-breaking groove texture being JSL precision machining groove; Standard engineering drawing dimension annotations: Outer diameter φ10, Thickness 3.97, Inner hole φ4.4, Single-sided chamfer angle 11°, Single-sided countersunk installation hole.
