55 2-Flute Flat End Mill
This edge chamfer milling cutter is a 62-degree, 2-flute end mill. Solid carbide with nano coating. Sharp and wears well.
Fully ground cutting edges. Smooth cuts.
Nano coating. Double cutting edge design. Balances strength and sharpness. Rigid body, burr-free edges.
Large core diameter. Precision-ground chip flutes. Better surface finish, chips don’t stick.
Small Craftsman (Shandong) Machine & Tools Co., Ltd. is one of the leading manufacturers and suppliers of 55 2-flute flat end mill in China. If you're going to wholesale bulk advanced 55 2-flute flat end mill, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
55 2-Flute Flat End Mill
55 2-Flute Flat End Mill is optimized for efficient material removal with excellent chip evacuation. Ideal for slotting and roughing in aluminum and non-ferrous materials.
This edge chamfer milling cutter is a 62-degree, 2-flute end mill. Solid carbide with nano coating. Sharp and wears well.
Fully ground cutting edges. Smooth cuts.
Nano coating. Double cutting edge design. Balances strength and sharpness. Rigid body, burr-free edges.
Large core diameter. Precision-ground chip flutes. Better surface finish, chips don't stick.
Specs
|
Material |
Tungsten carbide |
|
Coating |
Bronze nano |
|
Helix |
35° |
|
Hardness |
Below 62 HRC |
|
Materials |
Tool steel, alloy steel, cast iron, copper, stainless steel |
|
Machines |
CNC centers, engraving machines, high-speed mills |
62-degree 2-flute solid carbide. This uncoated carbide end mill handles workpieces below 62 HRC.
Bronze nano coating. Wear-resistant, heat-resistant. Tool lasts longer.
Fully ground cutting edges. Sharp, burr-free. Smooth cuts, no chipping.
Double cutting edge design. Balances strength and sharpness. Rigid, stable cutting.
Large core diameter. Stronger, better impact resistance. Handles load without deforming.
35° helix with precision-ground flutes. Chips clear clean, no sticking. This Uncoated 55 Degree 2 Flute Square End Mill runs efficiently.
Wide material range. Tool steel, alloy steel, cast iron, copper, stainless steel.
Fits CNC centers, engraving machines, high-speed mills. This aluminum end mill handles various materials.
Tungsten carbide base. Hard, wears well. Edge stays sharp.
Smooth coating surface. No built-up edge. Less scratching, better quality.
High concentricity. Minimal runout. Dimensions stay consistent.
Optimized flutes. Cuts light, reduces machine load.
Good for facing, side milling, slotting. This slot milling cutter works for hardware and mold work.

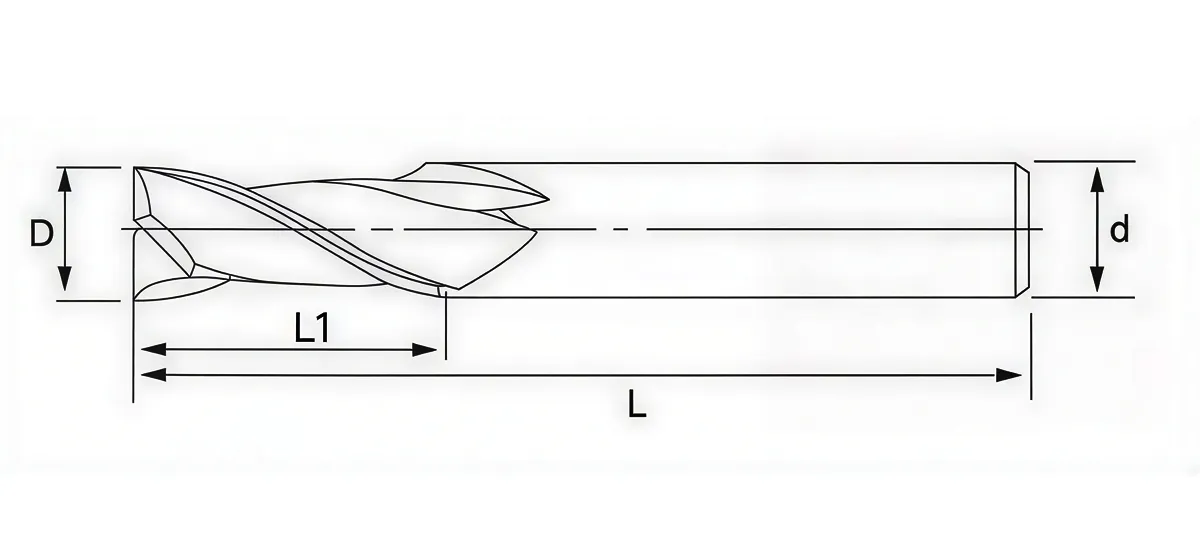

| Type | Diameter(D) | Length of Cut(L1) | Shank Dia(d) | Overall Length(L) |
| 1.0*3*4*50*2F | 1 | 3 | 4 | 50 |
| 1.5*4*4*50*2F | 1.5 | 4 | 4 | 50 |
| 2.0*6*4*50*2F | 2 | 6 | 4 | 50 |
| 2.5*8*4*50*2F | 2.5 | 8 | 4 | 50 |
| 3.0*8*4*50*2F | 3 | 8 | 4 | 50 |
| 3.5*10*4*50*2F | 3.5 | 10 | 4 | 50 |
| 4*10*4*50*2F | 4 | 10 | 4 | 50 |
| 4*15*4*75*2F | 4 | 15 | 4 | 75 |
| 4*20*4*100*2F | 4 | 20 | 4 | 100 |
| 5*13*5*50*2F | 5 | 13 | 5 | 50 |
| 5*13*6*50*2F | 5 | 13 | 6 | 50 |
| 6*15*6*50*2F | 6 | 15 | 6 | 50 |
| 6*25*6*75*2F | 6 | 25 | 6 | 75 |
| 6*30*6*100*2F | 6 | 30 | 6 | 100 |
| 8*20*8*60*2F | 8 | 20 | 8 | 60 |
| 8*25*8*75*2F | 8 | 25 | 8 | 75 |
| 8*35*8*100*2F | 8 | 35 | 8 | 100 |
| 10*25*10*75*2F | 10 | 25 | 10 | 75 |
| 10*40*10*100*2F | 10 | 40 | 10 | 100 |
| 12*30*12*75*2F | 12 | 30 | 12 | 75 |
| 12*45*12*100*2F | 12 | 45 | 12 | 100 |
| 14*35*14*80*2F | 14 | 35 | 14 | 80 |
| 14*45*14*100*2F | 14 | 45 | 14 | 100 |
| 16*45*16*100*2F | 16 | 45 | 16 | 100 |
| 18*45*18*100*2F | 18 | 45 | 18 | 100 |
| 20*45*20*100*2F | 20 | 45 | 20 | 100 |
| 6*35*6*150*2F | 6 | 35 | 6 | 150 |
| 8*50*8*150*2F | 8 | 50 | 8 | 150 |
| 10*55*10*150*2F | 10 | 55 | 10 | 150 |
| 12*60*12*150*2F | 12 | 60 | 12 | 150 |
| 14*65*14*150*2F | 14 | 60 | 14 | 150 |
| 16*70*16*150*2F | 16 | 70 | 16 | 150 |
| 18*70*18*150*2F | 18 | 70 | 18 | 150 |
| 20*70*20*150*2F | 20 | 70 | 20 | 150 |
| 7*20*8*60*2F | 7 | 20 | 8 | 60 |
| 9*20*10*75*2F | 9 | 20 | 10 | 75 |
| 11*25*12*75*2F | 11 | 25 | 12 | 75 |
| 13*40*14*100*2F | 13 | 40 | 14 | 100 |
| 15*45*16*100*2F | 15 | 45 | 16 | 100 |
| 4*20*4*150*2F | 4 | 20 | 4 | 150 |
| 6*35*6*200*2F | 6 | 35 | 6 | 200 |
| 8*50*8*200*2F | 8 | 50 | 8 | 200 |
| 10*55*10*200*2F | 10 | 55 | 10 | 200 |
| 12*60*12*200*2F | 12 | 60 | 12 | 200 |
| 14*60*14*200*2F | 14 | 60 | 14 | 200 |
| 16*70*16*200*2F | 16 | 70 | 16 | 200 |
| 20*70*20*200*2F | 20 | 70 | 20 | 200 |
