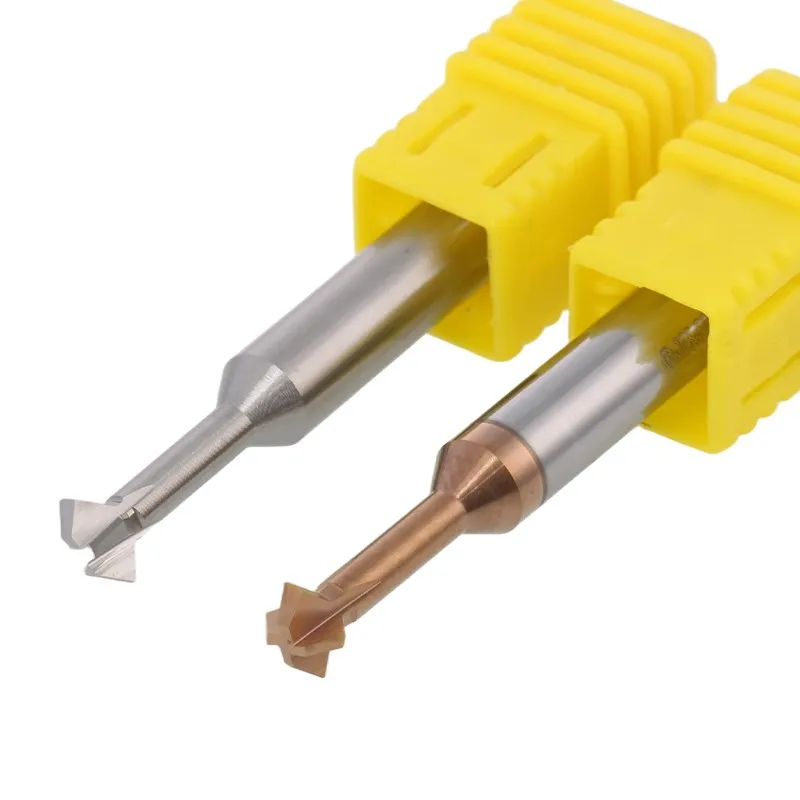

Chamfering End Mill
Small Craftsman (Shandong) Machine & Tools Co., Ltd. is one of the leading manufacturers and suppliers of chamfering end mill in China. If you're going to wholesale bulk advanced chamfering end mill, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
Key Features & Benefits
Dual-Edge Innovation: Unlike standard tools, our Chamfering End Mill is engineered with cutting edges on both the top and bottom. This allows for seamless forward and reverse chamfering, significantly reducing tool change time and increasing productivity.
Extended Reach for Deep Holes: Featuring an ultra-long neck (relief) design, this tool is the perfect solution for deep hole processing and reaching confined areas that standard mills can't touch.
Burr-Free Precision: Experience smooth, high-gloss finishes. The advanced tungsten steel carbide construction ensures wear resistance and maintains sharpness for high-speed machining.
Micro-Diameter Capabilities: Available in extremely small diameters, making it ideal for intricate workpiece shapes and micro-hole deburring.
Universal Material Compatibility: One tool for all your needs. Effectively processes:
- Steel & Cast Iron
- Stainless Steel
- Copper & Aluminum Alloys
- Titanium & Magnesium Alloys
- Zinc Alloys
Technical Specifications
|
Material |
Premium Tungsten Steel Carbide (High Hardness & Toughness) |
|
Angles Available |
60° / 90° / 120° |
|
Coating |
Advanced Nano-Coating for heat resistance and longevity |
|
Shank Type |
Straight Shank for high precision clamping |
|
Function |
Front & Back Chamfering, Internal/External Deburring, Gear Milling, Deep Groove Chamfering. |
Why Choose Our Chamfering End Mill?
In modern CNC machining, efficiency is everything. Our Chamfering End Mill eliminates the need to flip workpieces for backside deburring, ensuring better concentricity and saving labor costs. Its high-rigidity carbide body minimizes vibration, providing a stable cutting process even at high RPMs.
Application Scenes
Through-Hole Deburring
Perfect for cleaning the top and bottom edges of drilled holes.
Edge Contouring
Smooths the sharp outer edges of metal plates and components.
Complex Internal Geometry
Easily navigates inside cavities for precision chamfering.
| Specification | Diameter | Edge height | Gap diameter | Gap length | Handle diameter | Total length | Number of edges |
| 2*60° | 2 | 0.64 | 0.9 | 3 | 4 | 50 | 4 |
| 3.0*60° | 3 | 0.92 | 1.4 | 4 | 4 | 50 | 4 |
| 4.0*60° | 4 | 1.24 | 1.9 | 8 | 4 | 50 | 4 |
| 5.0*60° | 5 | 1.56 | 2.3 | 10 | 6 | 50 | 4 |
| 6.0*60° | 6 | 1.9 | 2.8 | 10 | 6 | 50 | 4 |
| 8.0*60° | 8 | 2.54 | 3.6 | 12 | 8 | 60 | 4 |
| 10.0*60° | 10 | 3.18 | 4.5 | 15 | 10 | 60 | 4 |
| 12.0*60° | 12 | 3.81 | 5.4 | 18 | 12 | 60 | 4 |
| 2*90° | 2 | 1.1 | 0.9 | 3 | 4 | 50 | 4 |
| 3.0*90° | 3 | 1.6 | 1.4 | 4 | 4 | 50 | 4 |
| 4.0*90° | 4 | 2.15 | 1.9 | 8 | 4 | 50 | 4 |
| 5.0*90° | 5 | 2.7 | 2.3 | 10 | 6 | 50 | 4 |
| 6.0*90° | 6 | 3.3 | 2.8 | 10 | 6 | 50 | 4 |
| 8.0*90° | 8 | 4.4 | 3.6 | 12 | 8 | 60 | 4 |
| 10.0*90° | 10 | 5.5 | 4.5 | 15 | 10 | 60 | 4 |
| 12.0*90° | 12 | 6.6 | 5.4 | 18 | 12 | 60 | 4 |
| D2*120° | 2 | 1.9 | 0.9 | 3 | 4 | 50 | 4 |
| 3.0*120° | 3 | 2.77 | 1.4 | 4 | 4 | 50 | 4 |
| 4.0*120° | 4 | 3.72 | 1.9 | 8 | 4 | 50 | 4 |
| 5.0*120° | 5 | 4.67 | 2.3 | 10 | 6 | 50 | 4 |
| 6.0*120° | 6 | 5.71 | 2.8 | 10 | 6 | 50 | 4 |
| 8.0*120° | 8 | 7.62 | 3.6 | 12 | 8 | 60 | 4 |
| 10.0*120° | 10 | 9.53 | 4.5 | 15 | 10 | 60 | 4 |
| 12.0*120° | 12 | 11.43 | 5.4 | 18 | 12 | 60 | 4 |
